Insulated Panel
Urethane
Energy efficiency
Consistent quality and performance across commercial and industrial projects
Durable
Engineered for performance, tested for long-term reliability
Cost-effective
Streamlined installation allows for projects to avoid costly schedule overruns
Specification
Material
External Finishing
Polyester or fluoroplastic coating on galvanized steel sheets between 0.5 to 0.8 mm
Mid Insulation Material
PIR Density: 45kg/m³ ±5
Heat conductivity: 0.019 to 0.021 W/m · K
PUR Density: 35kg/m³ ±5
Heat conductivity: 0.019 to 0.021 W/m · K
Internal Finishing
Polyester or fluoroplastic coating on galvanized steel sheets between 0.5 to 0.8 mm
Specification
Length (ft)
6' to 30'
!Please contact our technical division for panels with length of 30' or longer.
Thickness (mm)
50100125150200
NUF1
Urethane

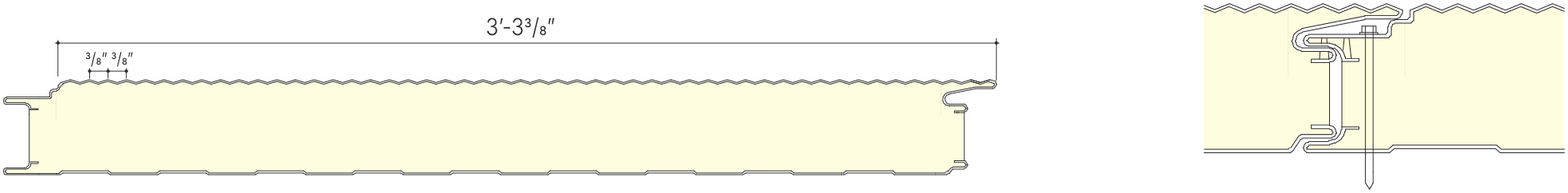

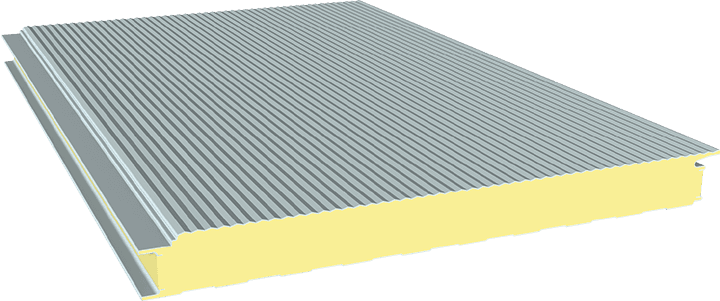

NUM1
Urethane

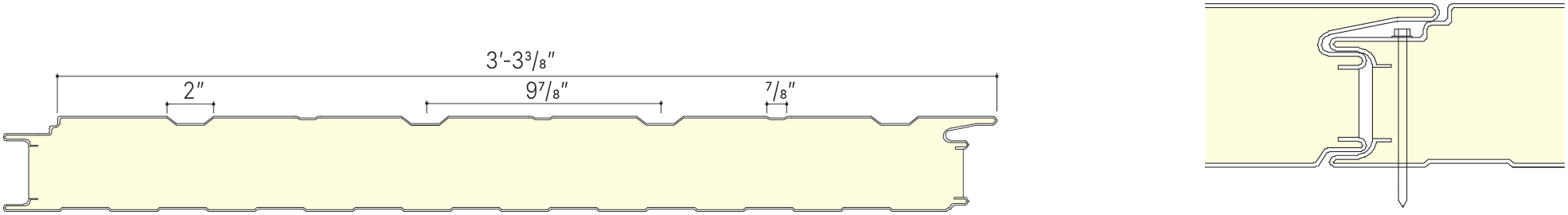

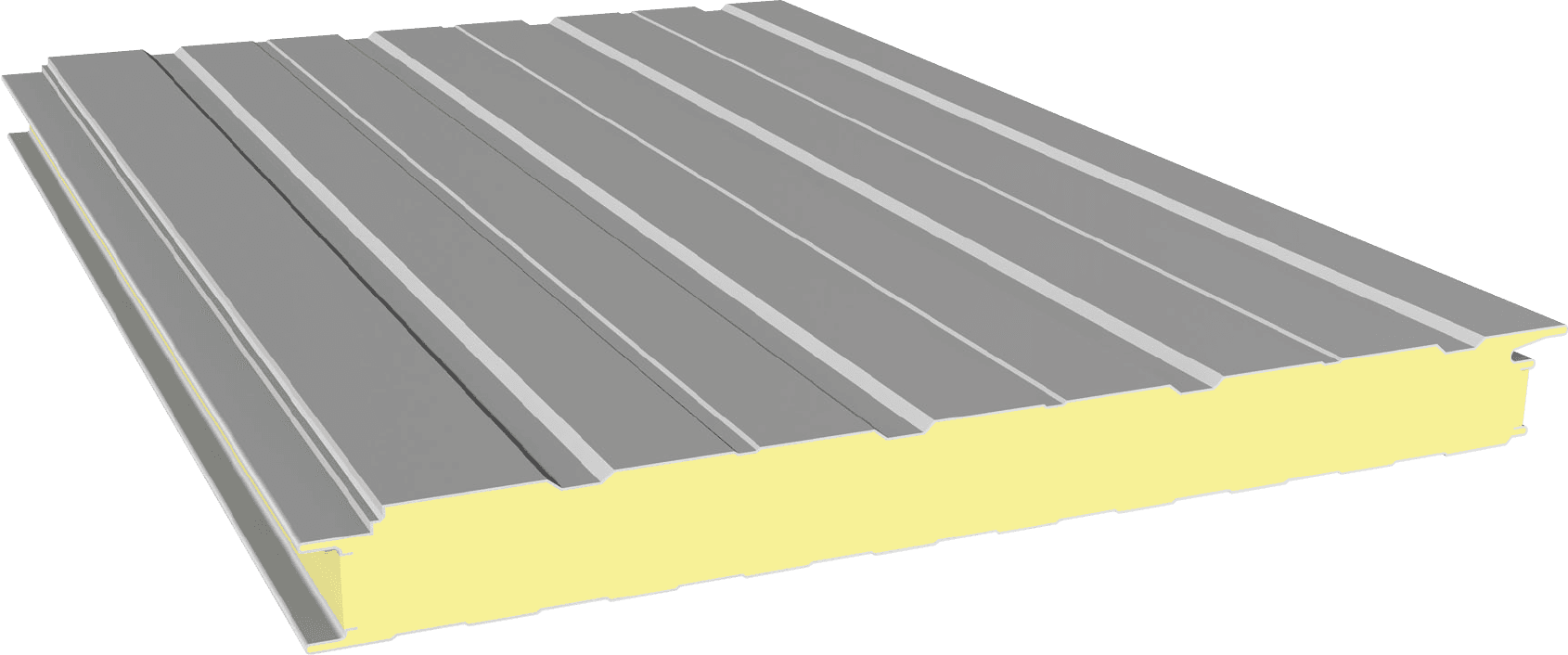

NUR1
Urethane
